CLZ-HD Heavy Duty Capacitors

Premium power capacitors for extreme working conditions

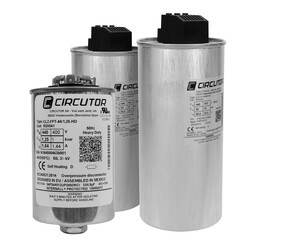

CLZ-HD Heavy Duty Capacitors

CLZ-HD Series

Three-phase tubular power capacitors with nitrogen gas refrigeration

Electrical Specifications

  • ✓ Frequency: 60 Hz
  • ✓ Voltage: 440 V
  • ✓ Insulation: 3/12 kV
  • ✓ Tolerance: -5...+10%

Performance Features

  • ✓ Max Phase Current: 400 x In
  • ✓ Max Transient Current: 1.8 In
  • ✓ Losses: < 0.4 W/kvar
  • ✓ IP Rating: IP20 / IP54

PRODUCT INFORMATION

DESCRIPTION

The CLZ-HD (Heavy Duty) capacitor range consists of dry-type tubular capacitors covering a wide range of power and voltage ratings for 50 and 60 Hz applications. These capacitors are specifically designed for installations with extreme working conditions, featuring advanced manufacturing processes that guarantee top quality and long-lasting performance.

The CLZ-HD capacitors incorporate innovative nitrogen gas refrigeration technology, providing a high-efficiency, inert, and non-flammable cooling system. This advanced thermal management ensures reliable operation even in the most demanding environments, making them ideal for harsh industrial applications where conventional capacitors would fail.

APPLICATIONS

CLZ-HD capacitors are designed for power factor correction in installations with both static and variable loads (capacitor banks). Their robust construction makes them particularly suitable for:

  • Industrial Plants - Manufacturing facilities with extreme temperature variations
  • Mining Operations - Harsh environments with dust and vibration
  • Steel Mills - High-temperature industrial applications
  • Chemical Processing - Corrosive and demanding environments
  • Power Generation - Utility and renewable energy applications
  • Oil & Gas Facilities - Offshore and onshore installations
  • Water Treatment Plants - Humid and corrosive conditions
  • Data Centers - Critical power quality applications

LV POWER CAPACITORS

CLZ-FPT-23/1,25-HD Capacitor

CLZ-FPT-23/1,25-HD

Three-phase tubular power capacitor for 230V applications

Code: R2H511
Terminal: F
Frequency: 50 Hz
kvar (230V): 1.25
Voltage: 230 V

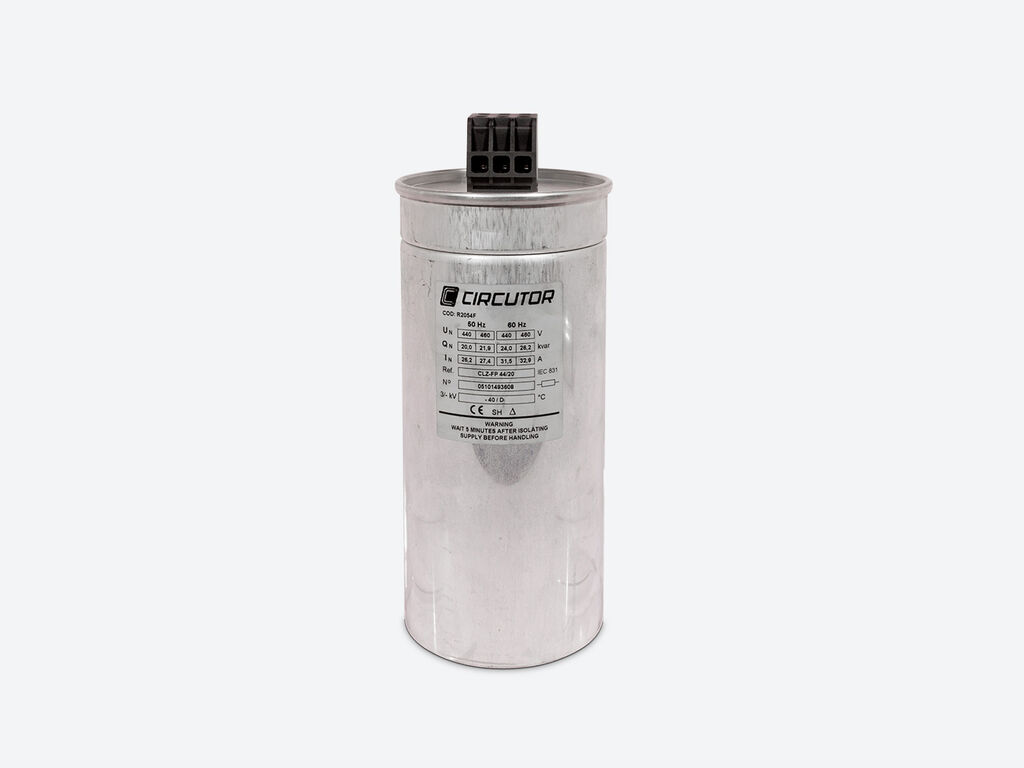

CLZ-FP-23/5-HD Capacitor

CLZ-FP-23/5-HD

5 kvar three-phase tubular power capacitor

Code: R2H516
Terminal: A
Frequency: 50 Hz
kvar (230V): 5
Voltage: 230 V
Cover: Optional
CLZ-FPT-24/2,5-60Hz-HD Capacitor

CLZ-FPT-24/2,5-60Hz-HD

60Hz three-phase tubular power capacitor for 240V

Code: R2H622
Terminal: F
Frequency: 60 Hz
kvar (240V): 2.5
Voltage: 240 V
CLZ-FP-24/5-UHD-60Hz Capacitor

CLZ-FP-24/5-UHD-60Hz

Ultra heavy duty three-phase tubular power capacitor

Code: R2HM26
Terminal: Sigut
Frequency: 60 Hz
kvar (240V): 5
Voltage: 240 V

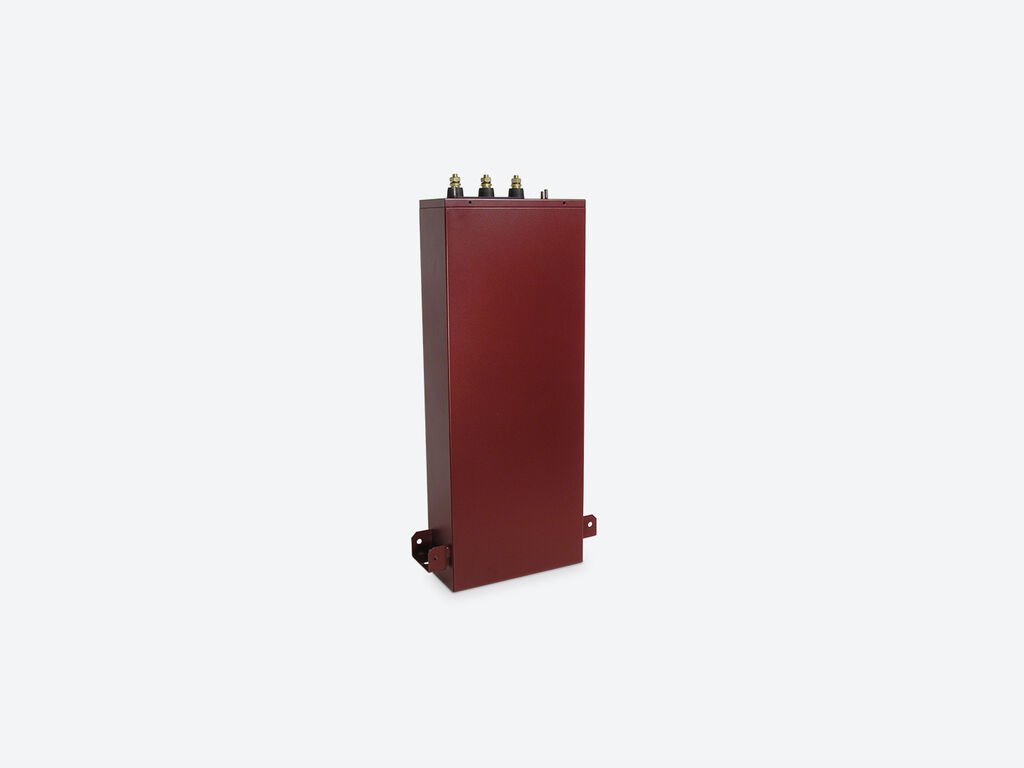

CSB-23/20 Power Capacitor

CSB-23/20

Power capacitor for 230V applications

Code: R2321F
Frequency: 50/60 Hz
kvar (50Hz): 20
kvar (60Hz): 25
Voltage: 230 V

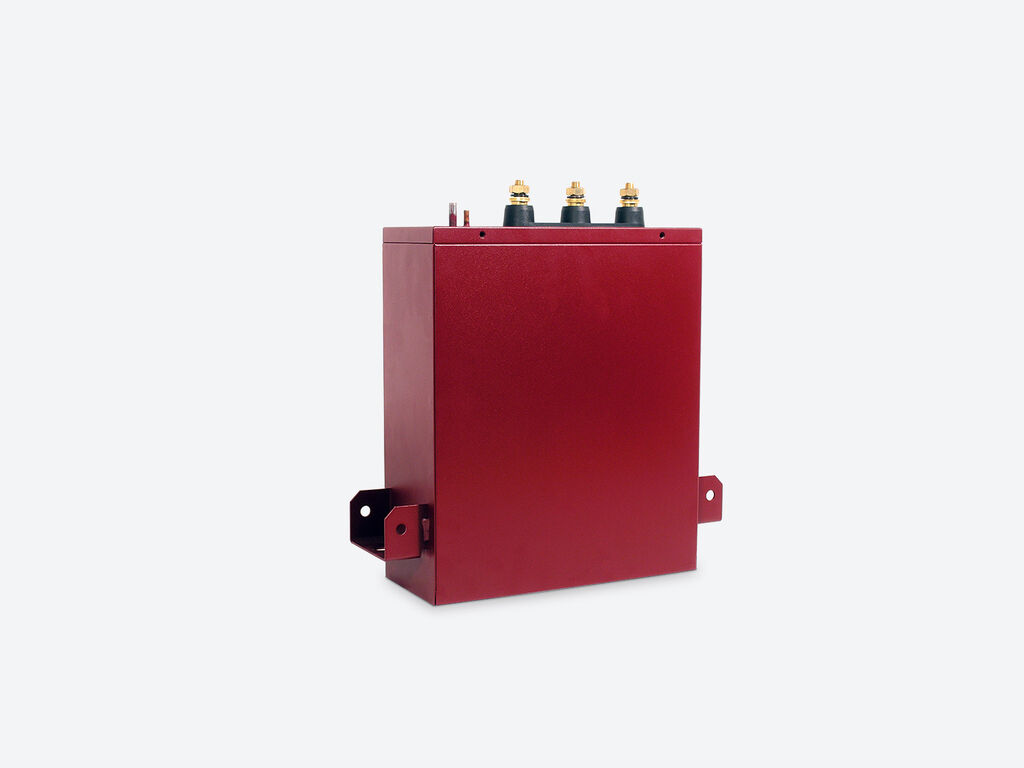

CSB-23/40 Power Capacitor

CSB-23/40

Power capacitor for 230V applications

Code: R2321J
Frequency: 50/60 Hz
kvar (50Hz): 40
kvar (60Hz): 50
Voltage: 230 V
CLZ-FP-48/40-60Hz-HD Capacitor

CLZ-FP-48/40-60Hz-HD

Three-phase tubular power capacitor, 60 Hz

Code: R2H66R
Terminal: B
Frequency: 60 Hz
kvar (460V): 36.75
kvar (480V): 40
Voltage: 480 V
CLZ-FP-23/6,25-HD Capacitor

CLZ-FP-23/6,25-HD

Three-phase tubular power capacitor

Code: R2H517
Terminal: A
Frequency: 50 Hz
kvar (220V): 5.7
kvar (230V): 6.25
Cover: Optional
Voltage: 230 V

LV REACTORS

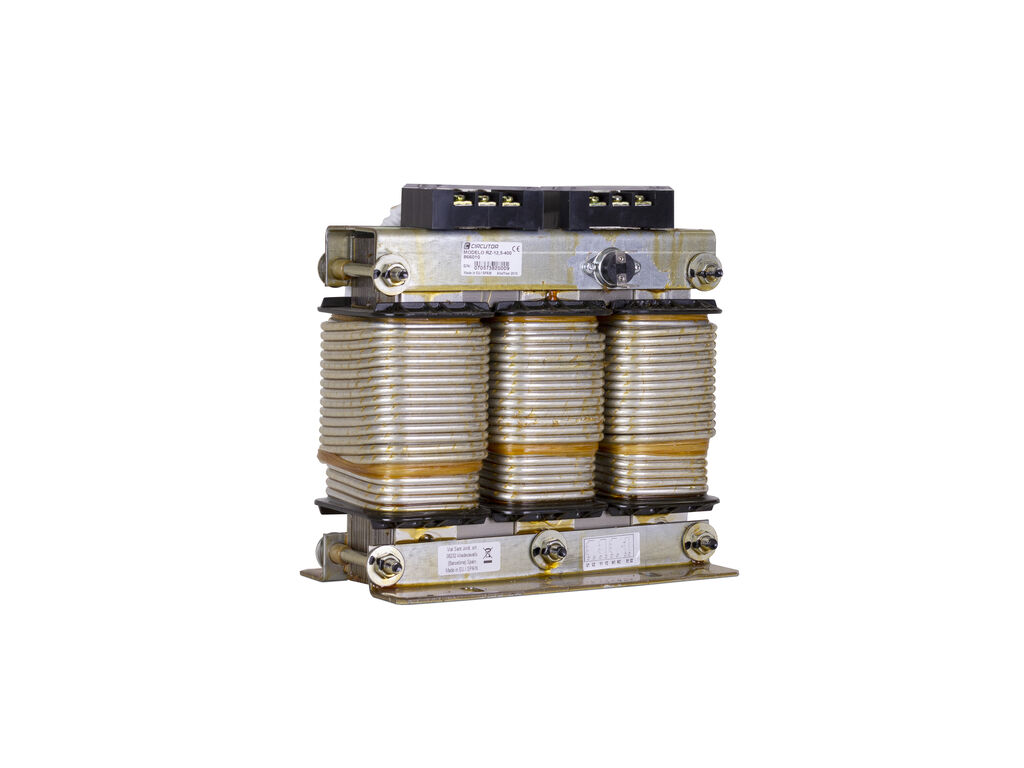

RZ-15-480-60Hz-7% Reactor

RZ-15-480-60Hz-7%

Reactor for detuned filters, 15 kvar at 480V

Code: P731200017000
Inductance: 3.06 mH
Frequency: 60 Hz
kvar: 15
Voltage: 480 V
For Capacitor: CLZ-FP-52/17-60Hz-HD

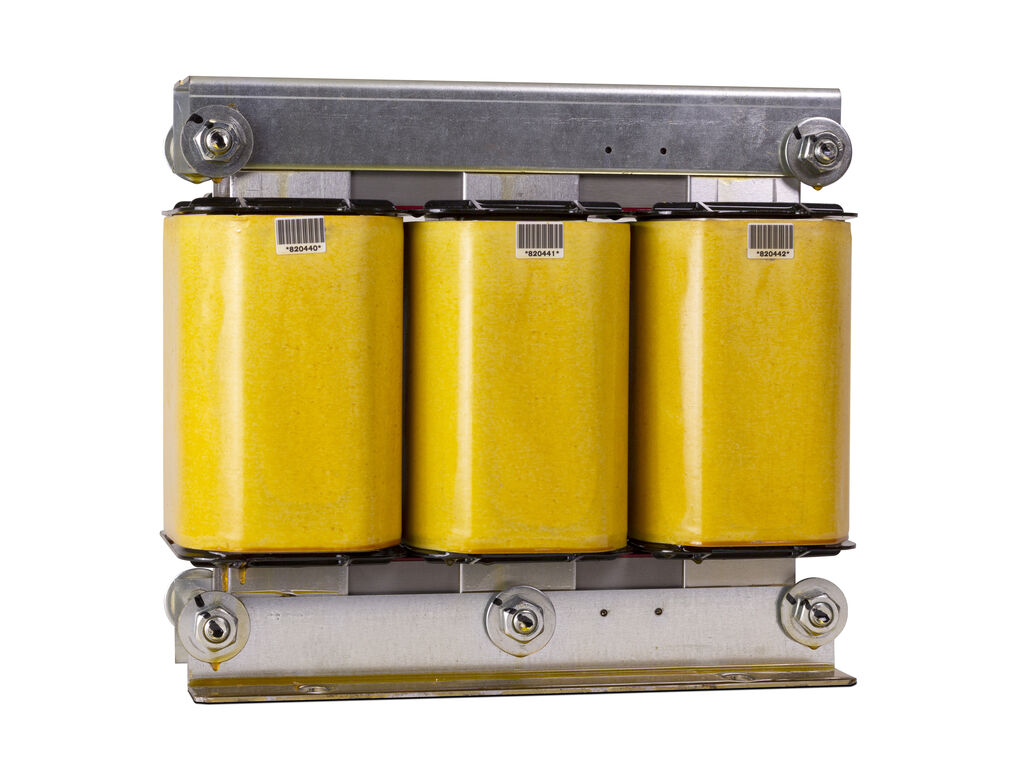

RBZ-20-480-60Hz-7% Reactor

RBZ-20-480-60Hz-7%

Reactor for detuned filters, 20 kvar at 480V

Code: P731250017000
Inductance: 2.29 mH
Frequency: 60 Hz
kvar: 20
Voltage: 480 V
For Capacitor: CLZ-FP-52/22.5-60Hz-HD

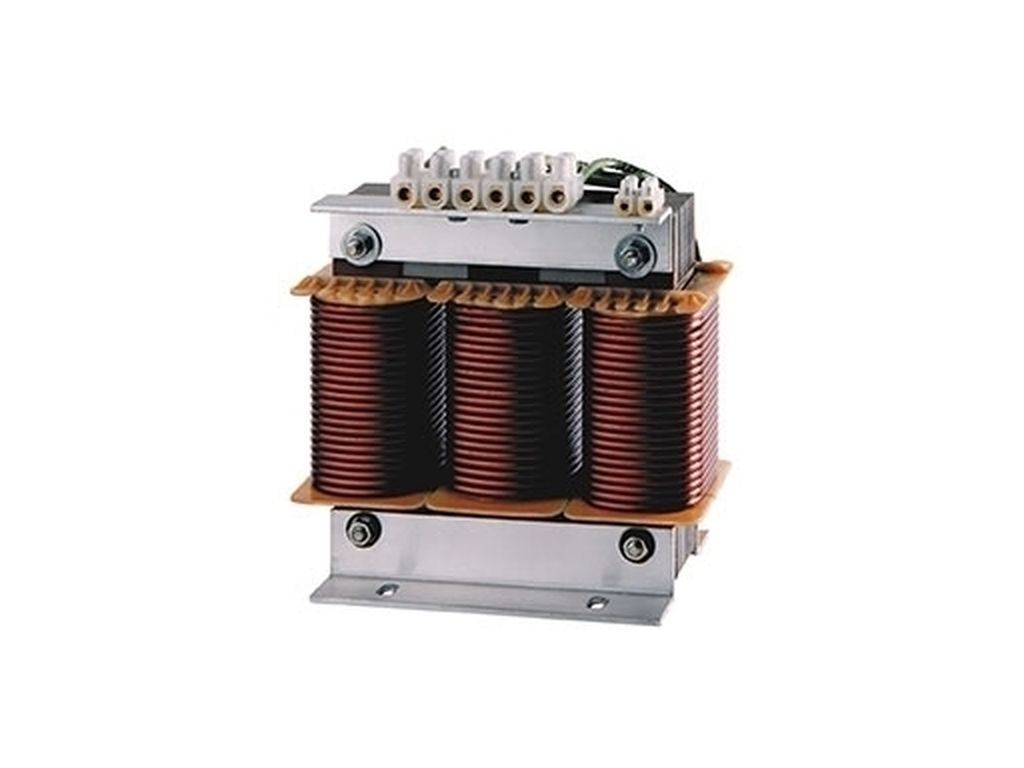

REZ-5-400 Reactor

REZ-5-400

General purpose reactor for power applications

Code: P73210
Inductance: 23.67 mH
Current: 5 A
Frequency: 50 Hz
kvar: 5
Voltage: 400 V
Losses: 63 W
RBZ-25-480-60Hz-14% Reactor

RBZ-25-480-60Hz-14%

Reactor for rejection filters, 25 kvar at 480V

Code: P731300017300
Inductance: 3.91 mH
Frequency: 60 Hz
kvar: 25
Voltage: 480 V
For Capacitor: CLZ-FP-60/34.5-60Hz-HD

CONTACTORS

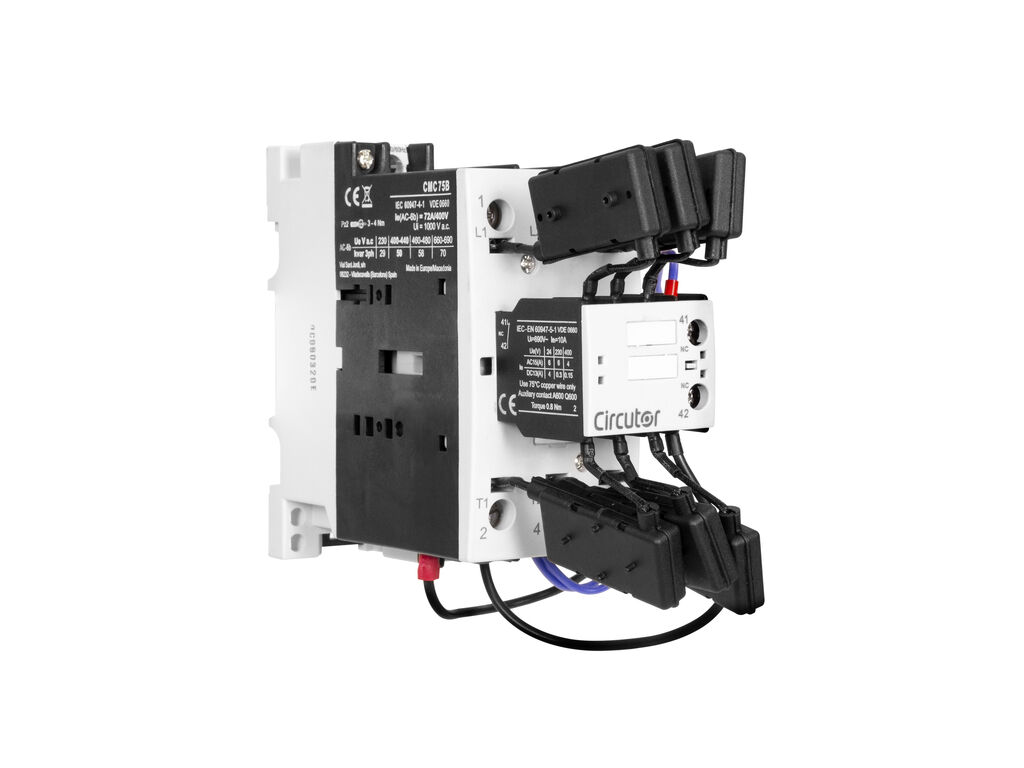

CMC 75 B Contactor

CMC 75 B

Heavy duty contactor for capacitor switching

Code: R281A9
Discharge Res.: 1
Frequency: 50/60 Hz
kvar (400V): 50
kvar (690V): 70
Coil Voltage: 230 V AC

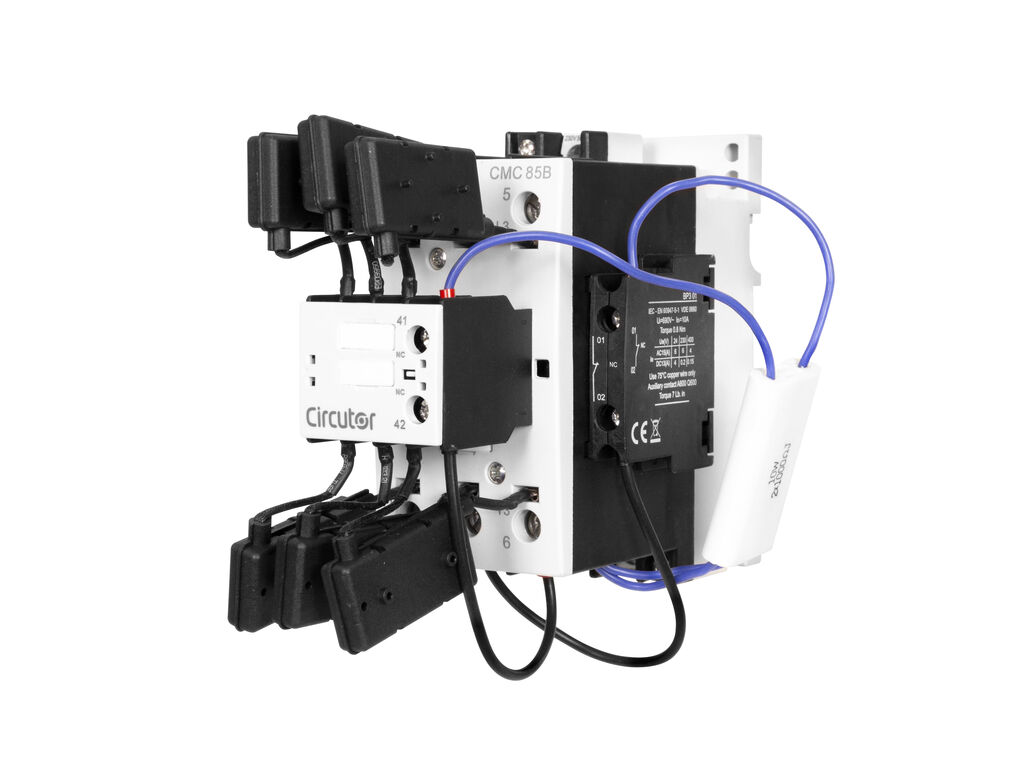

CMC 85 B Contactor

CMC 85 B

High capacity contactor for power applications

Code: R281A3
Discharge Res.: 1
Frequency: 50/60 Hz
kvar (400V): 60
kvar (690V): 80
Coil Voltage: 230 V AC
