Current transformers and shunts

Current transformers allow the different measuring devices to provide reliable and traceable data on the trends involving consumption and production processes in electrical installations. Especially designed to be installed quickly, easily and securely, meeting the most demanding expectations of today's market, covering a wide range of primary currents as well as multiple secondary outputs, both for AC and DC measurement.

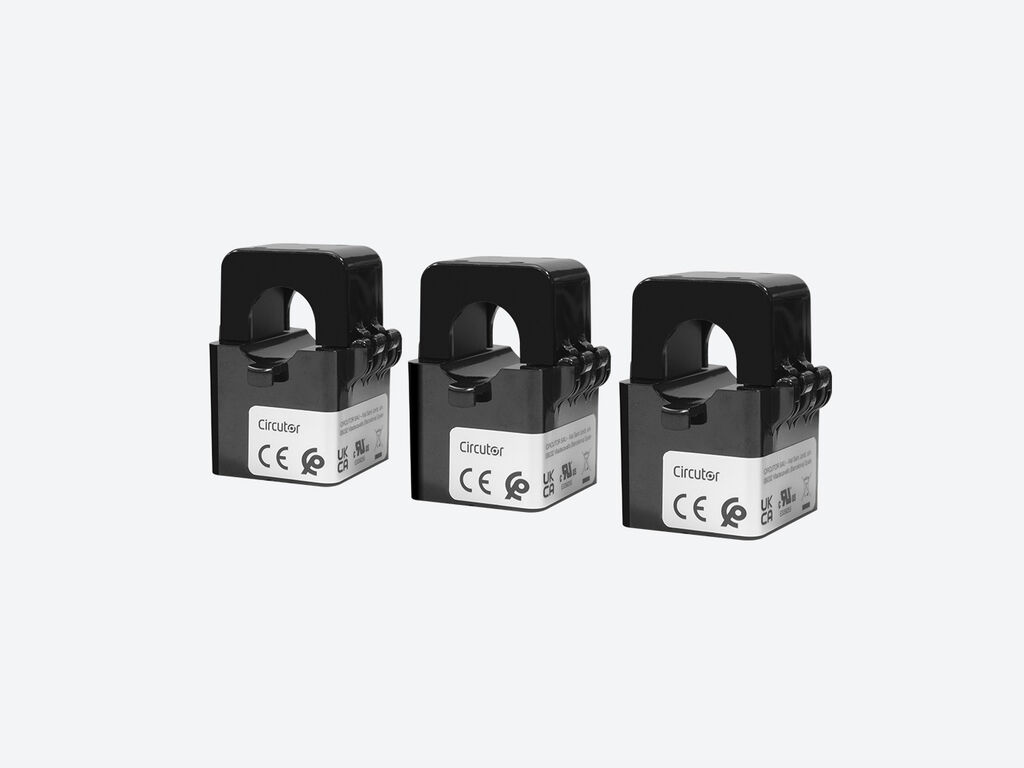

AC Current Transformers - 3xSCV1-100A/333mV

AC Current transformers

3xSCV1-100A/333mV

SCV1-100A/333mV, Split core current transformer

Code: M73811.

☑ Inner diameter (mm): 15
☑ System: Three-phase
☑ Class 0,5 Power (VA): 0,5
☑ Max. Current (A): 100
☑ Transformer type: Split core

INFORMATION

DESCRIPTION

Split-core current transformers with voltage-output secondary, designed for installation in systems where power supply interruption is not possible. Three 100 A transformers, with a /333 mV secondary output. Compatible with the CVM-D400 analyzer series.

APPLICATIONS

When a measurement is to be taken without interrupting the electrical supply, open-core transformers are required. The SCV1 transformers allow for energy measurements and are compatible with the CVM-D400 network analyzers, facilitating easy installation and ensuring accuracy.
