DETAILED INFORMATION

DESCRIPTION

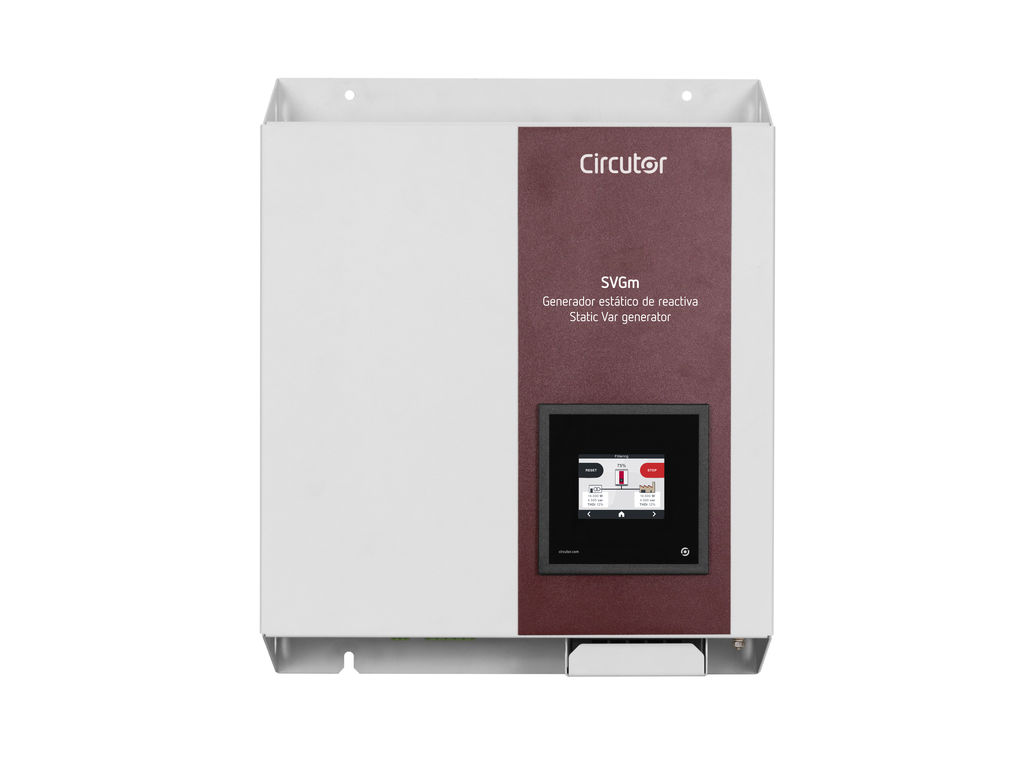

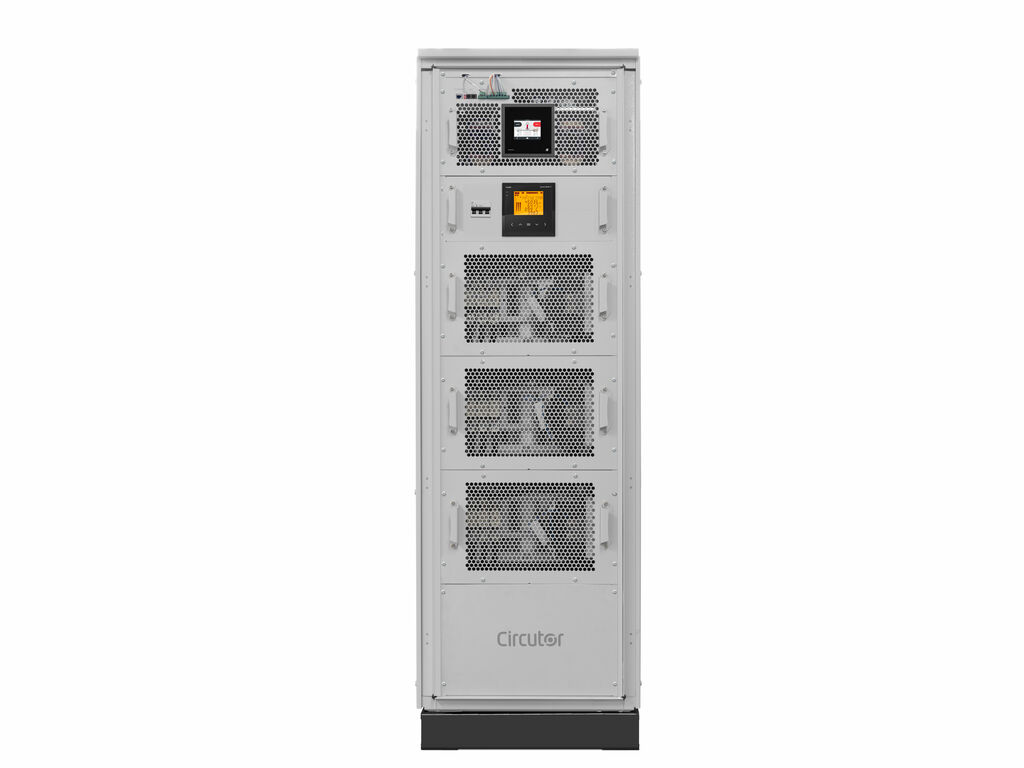

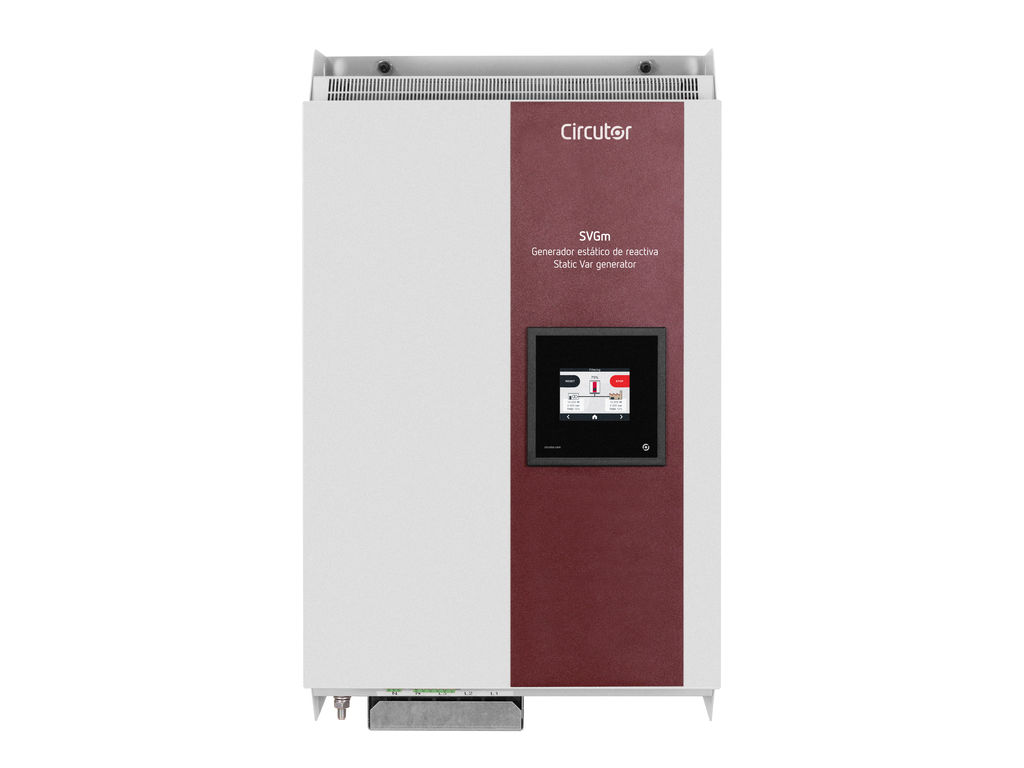

SVGm cabinet-type static var generators are the most accurate power factor correction solution in both unbalanced three-phase systems and installations with inductive and capacitive reactive power. They can be used in three-phase industrial, commercial or service installations, and they are not affected by the installation's harmonics. Much safer device with minimal maintenance. This product range features rack assembly in standard cabinets, designed to simplify installation. The implemented characteristics and functions are as follows: Power factor correction (inductive/capacitive) from 30 to 100 kvar (3W) and 20 to 69 kvar (4W) per cabinet. The 100 kvar (3W) and 69 kvar (4W) rack-type module's compact dimensions make it easy to install in standard cabinets. Multi-range voltage and frequency (50/60 Hz). Harmonic current immunity. Cos φ range from 0.7 inductive...to...0.7 capacitive. Web-based performance monitoring. Internal short-circuit protection. If higher reactive power compensation capacity is required, up to 100 devices can be connected in parallel.

APPLICATIONS

Ideal solution for individual loads or installations with numerous single-phase and three-phase loads, whether inductive or capacitive. Also, for installations whose load fluctuates over short time frames. Typical loads would be overhead cranes, welding equipment, lifts, drilling/shredding systems, data centres.
