AC Current Transformers - Product Catalog

Uninterruptible Power Supplies

Reliable power protection for critical equipment

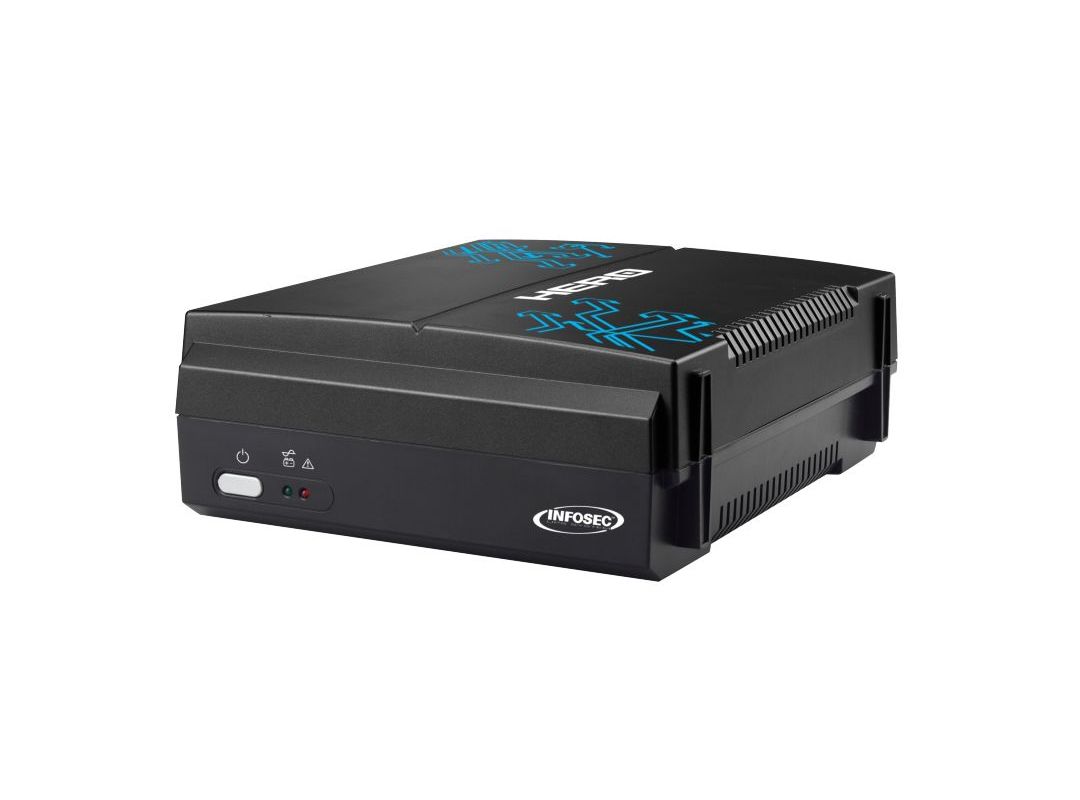

HERO 450 UPS

HERO 450

450 VA UPS for IT devices and electronics

Ref: 65986N1

General Specifications

  • UPS technology: High frequency
  • Power (VA): 450
  • Power (W): 240
  • Power Factor: 0.50
  • Phases: Single-phase/Single-phase

Characteristics

  • Format: Exclusively tower
  • Safety shutter: Yes
  • Wall mountable system: Yes
  • Outlets type: FR/Schuko outlet
  • Warranty: 2 years
  • Indicator: Light-emitting diode (LED)

PRODUCT DESCRIPTION

OVERVIEW

HERO 450 VA UPSs provide reliable and discreet protection for your IT devices and living room electronics. Featuring high-frequency technology and a tower format design, these UPS units ensure continuous power supply and protection against electrical disturbances.

UNINTERRUPTIBLE POWER SUPPLIES (UPS)

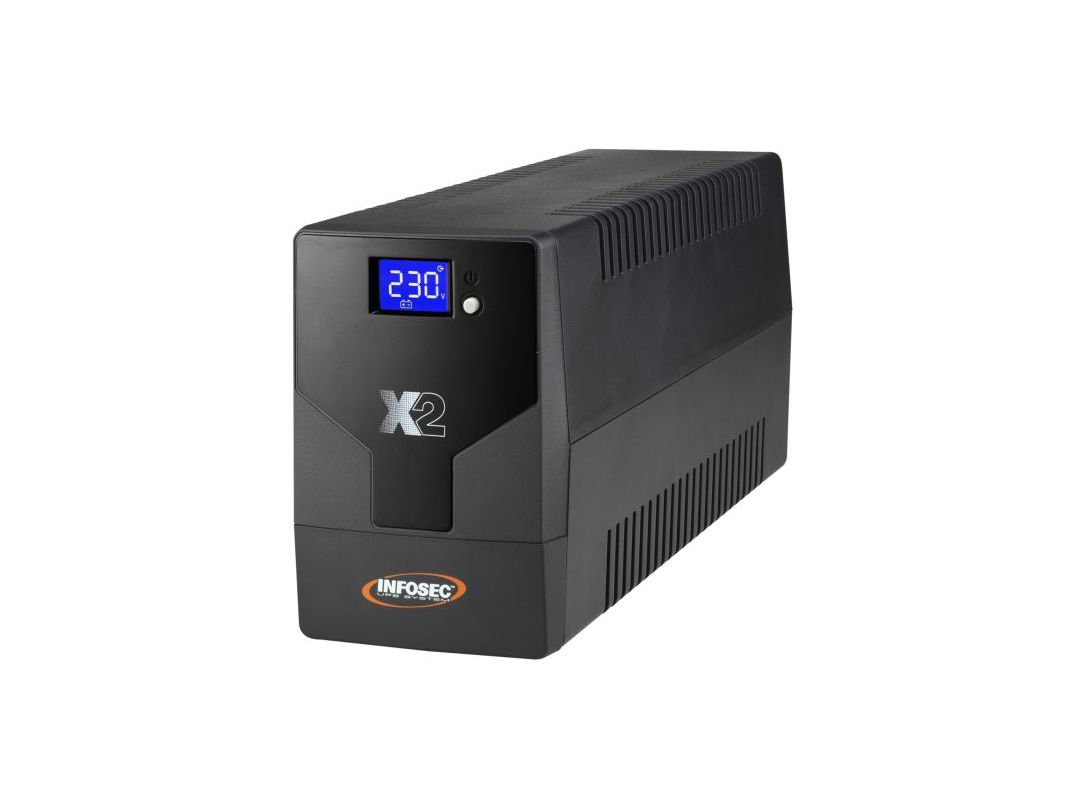

X2 LCD TOUCH 500 IEC UPS

X2 LCD TOUCH 500 IEC

Ref: 66036N1

The X2 LCD Touch UPS range has been designed to protect your personal and professional computers (Small Businesses) against power supply problems and dangerous electrical disturbances.

Type: Uninterruptible Power Supply
Display: LCD Touch Screen
Output: IEC connectors
Protection: Complete power protection

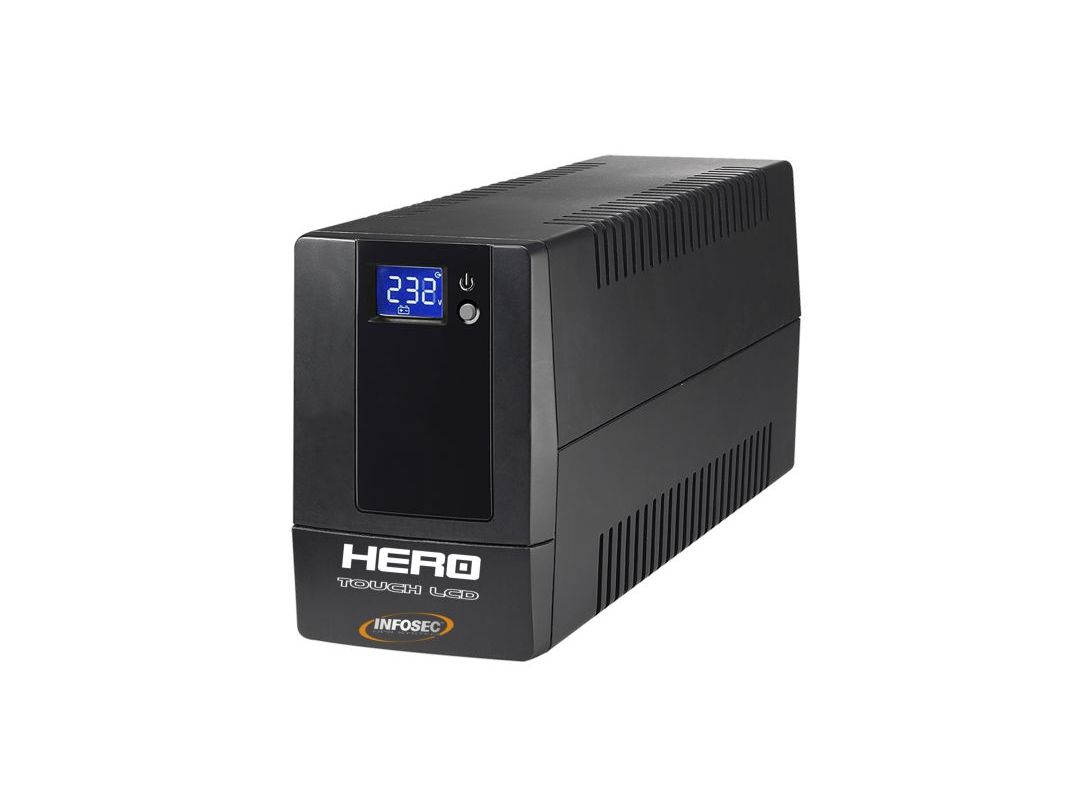

HERO Touch LCD 400 UPS

HERO Touch LCD 400

Ref: 65989N1

The HERO Touch LCD UPS range has been designed to protect your personal and professional computers (Small Businesses) against power supply problems and dangerous electrical disturbances.

Type: Uninterruptible Power Supply
Display: LCD Touch Screen
Capacity: 400 VA
Protection: Complete power protection

AUTOMATIC TRANSFER SWITCH CONTROLLERS (ATS)

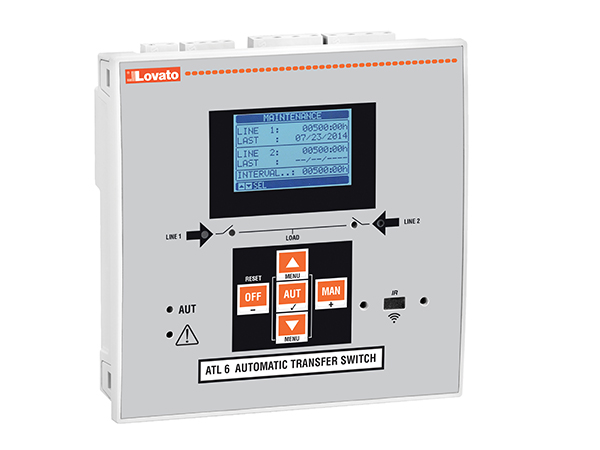

ATL600 Automatic Transfer Switch Controller

ATL600

Automatic transfer switch controller with optical port for 2 power sources (144X144mm/5.7X5.7"), power supply 110...240VAC

Type: Automatic transfer switch controller
Power Sources: 2
Voltage Inputs: Three-phase per line
Supply Voltage: 110…240VAC
Feature: Optical port
Dimensions: 144×144mm (5.7×5.7")

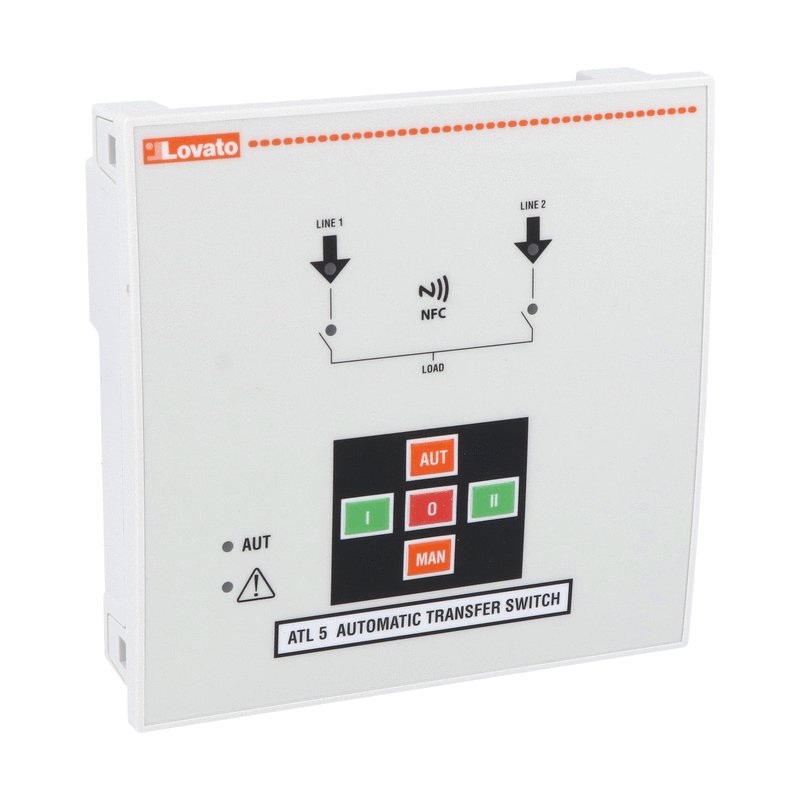

ATL500 Automatic Transfer Switch Controller

ATL500

Automatic transfer switch controller with NFC technology and synoptic, for 2 power sources, (144x144mm/5.7X5.7"), self-seeking power supply 110...240VAC

Type: Automatic transfer switch controller
Power Sources: 2
Voltage Inputs: Three-phase per line
Supply Voltage: 110…240VAC
Technology: NFC with synoptic
Power Supply: Self-seeking
Dimensions: 144×144mm (5.7×5.7")
ATP0125T4A230C600A Enclosed ATS

ATP0125T4A230C600A

Enclosed automatic transfer switch ATS with four-pole contactors, 125A, 87kVA capacity

Type: Enclosed automatic transfer switch
Power Sources: 2
Rated Current: 125A (AC1)
Supply Voltage: 230VAC
Capacity: 87kVA
Contactors: Four-pole
Dimensions: 600×400×250mm

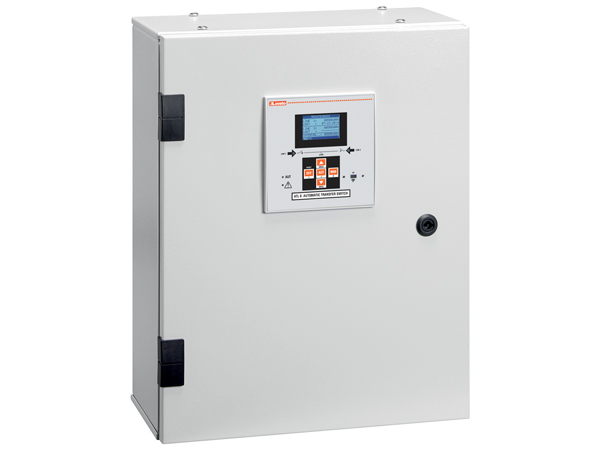

ATP0060T4A230C600A Enclosed ATS

ATP0060T4A230C600A

Enclosed automatic transfer switch ATS with four-pole contactors, 60A, 42kVA capacity

Type: Enclosed automatic transfer switch
Power Sources: 2
Rated Current: 60A (AC1)
Supply Voltage: 230VAC
Capacity: 42kVA
Contactors: Four-pole
Dimensions: 500×400×200mm
